Part Consolidation Through Investment Casting: Reducing Complexity Before Machining and Assembly

---

In many metal component programs, complexity does not begin in manufacturing. It begins in the way the part is designed.

A component that could have been produced as one integrated casting is sometimes built as a combination of multiple machined parts, welded sections, fasteners, inserts, brackets, or fabricated sub-components. At first, this may seem practical. Each part is simpler. Each operation appears manageable. Each supplier handles one portion of the job.

But as the program moves from design to production, the hidden cost of that complexity starts to appear.

More parts mean more interfaces. More interfaces mean more tolerance stack-ups. More tolerance stack-ups create more inspection, machining, assembly, and quality-control challenges. Every additional joint, weld, fastener, or alignment point becomes another opportunity for variation.

This is where investment casting can offer a significant advantage.

By allowing multiple features to be integrated into a single near-net-shape component, investment casting can reduce part count, simplify downstream machining, improve assembly readiness, and create a more stable manufacturing path.

Part consolidation is not only a design improvement. It is a manufacturing strategy.

What Part Consolidation Means in Metal Component Manufacturing

Part consolidation means combining two or more separate components, features, or functional elements into a single manufactured part.

In metal component programs, this may involve replacing:

• welded fabrications
• multi-part machined assemblies
• bolted brackets
• separate bosses and mounting elements
• joined flow passages
• added support ribs
• multiple sourced components
• alignment-dependent sub-assemblies

with one integrated casting.

The goal is not simply to reduce the number of parts. The goal is to reduce the number of manufacturing and assembly variables that can affect final performance.

A consolidated investment cast component may include complex geometry, ribs, bosses, flanges, mounting points, internal shapes, external features, and machining allowances in one casting.

This gives engineering teams more freedom to design around function rather than being limited by how individual pieces will be joined later.

Why Investment Casting Supports Part Consolidation

Investment casting is well suited for part consolidation because it allows complex shapes to be produced with high dimensional accuracy and fine detail.

Unlike many manufacturing routes that start from standard stock, plates, tubes, or simple shapes, investment casting starts with a wax pattern that can reproduce complex geometry. This allows the final component to include forms that may be difficult or inefficient to create by machining or fabrication alone.

Investment casting can support:

• integrated mounting features
• complex curved surfaces
• thin walls
• ribs and reinforcement features
• bosses and connection points
• flow paths and port geometry
• near-net-shape profiles
• reduced post-casting machining
• fewer joined interfaces

For investment casting components used in various industries, such as pumps, valves, industrial machinery, automotive systems, energy equipment, and engineered assemblies, this design freedom is valuable.

Instead of asking, “How do we assemble several parts into this shape?” engineers can ask, “Can the required function be cast into the component from the beginning?”

That shift can reduce complexity throughout the manufacturing cycle.

Reducing Interfaces Reduces Risk

Every interface in a component or assembly introduces a risk point.

An interface may be a weld, bolt joint, press-fit area, gasket surface, threaded connection, locating feature, or mating face. Each one must be manufactured, inspected, assembled, and controlled.

When multiple parts are combined into one investment casting, some of these interfaces can be removed.

This can reduce:

• alignment issues
• leakage points
• weld distortion
• fastener dependency
• fitment problems
• tolerance accumulation
• inspection checkpoints
• assembly time
• rework risk

For example, a component that previously required multiple welded sections may be redesigned as one casting with integrated geometry. A bracket that required separate bosses may be cast with bosses included. A housing with multiple attached features may be produced as a single casting with selected areas machined later.

The fewer the interfaces, the fewer the chances for error between design intent and final assembly.

This is especially important for components where fit, sealing, flow, alignment, or load transfer affects performance.

Part Consolidation and Tolerance Stack-Ups

Tolerance stack-up is one of the most important reasons to consider part consolidation.

When several parts are joined together, each part has its own tolerance range. Each machining operation has variation. Each assembly step introduces positioning variation. Even when every individual part is within tolerance, the combined assembly may still create alignment or fitment problems.

A consolidated casting can reduce the number of independent tolerance contributors.

Instead of controlling several parts and their assembly relationship, the manufacturer can control one casting and machine critical features from a more unified geometry.

This can improve:

• positional consistency
• functional alignment
• assembly fitment
• inspection clarity
• machining strategy
• repeatability across batches

Part consolidation does not eliminate tolerance control. Critical surfaces may still need precision machining. But it can simplify where variation comes from and how it is managed.

For cast-to-machined components, this can make the downstream manufacturing route more predictable.

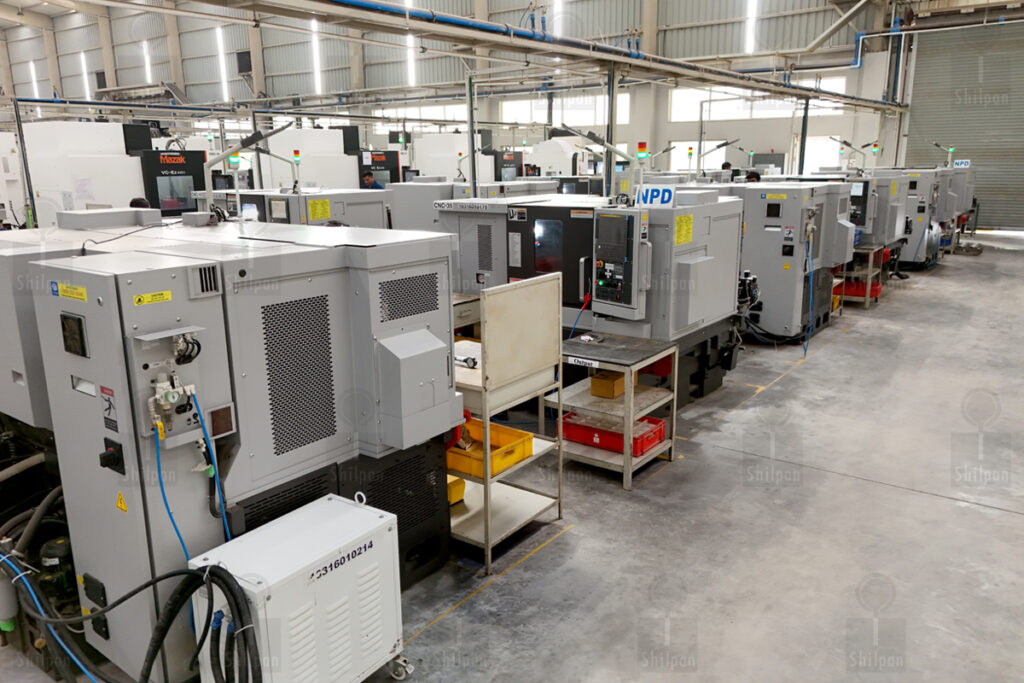

How Consolidation Reduces Machining Load

Machining is often necessary after investment casting, especially for sealing faces, bores, threads, mounting surfaces, datum faces, and functional interfaces.

However, part consolidation can reduce unnecessary machining in two ways.

First, investment casting creates a near-net-shape form. This means the component can be produced close to final geometry, reducing the amount of material that must be removed.

Second, by integrating features into the casting, the manufacturer may avoid machining separate parts and then assembling them later.

Instead of machining multiple pieces from solid stock, the casting can provide the main geometry. CNC machining can then focus on critical functional areas.

This can reduce:

• machining cycle time
• material removal
• tool wear
• fixture complexity
• handling between operations
• alignment corrections
• total production effort

The most efficient manufacturing route is not always the one with the lowest casting cost. Often, it is the route that reduces total work from raw material to finished component.

Investment casting becomes valuable when it reduces the burden on downstream operations while maintaining the required functional accuracy.

This is also why precision machining after investment casting should be planned around the consolidated component geometry.

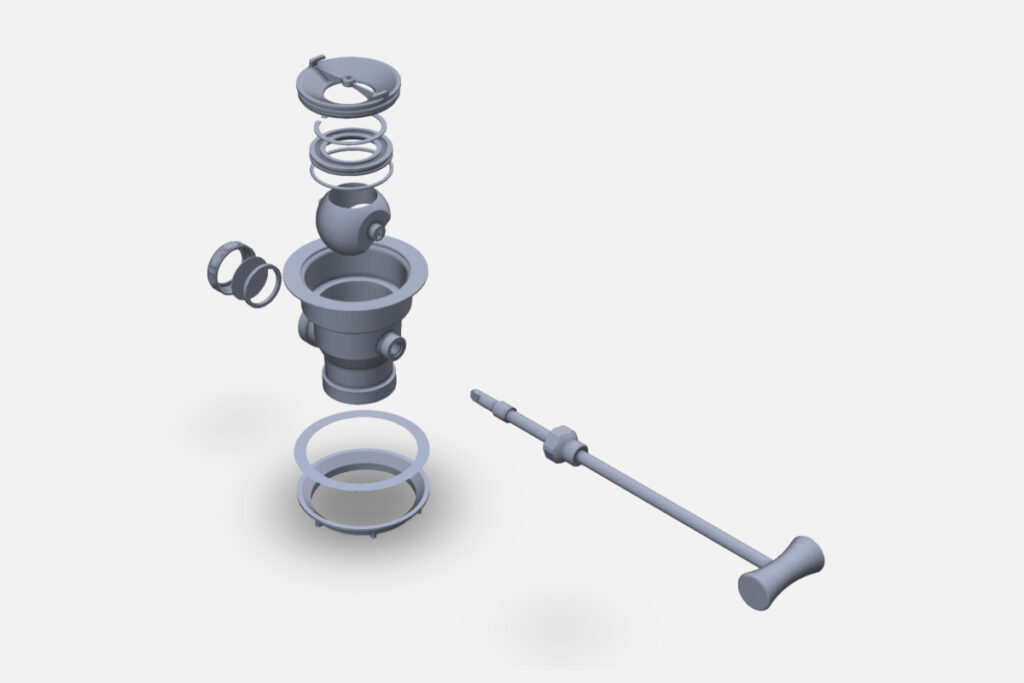

Simplifying Assembly Before Assembly Begins

Assembly problems are often created before the assembly stage.

If a product contains too many parts, too many interfaces, or too many alignment-dependent features, assembly becomes more difficult by design. Operators may need additional fixtures, more checks, more fasteners, more setup time, or more adjustments.

Part consolidation can simplify assembly before the first assembly operation begins.

By casting multiple features into one component, the manufacturer can reduce the number of parts that must be handled, aligned, fastened, sealed, or checked.

This supports:

• faster assembly
• fewer fitment issues
• reduced fixture dependency
• lower handling risk
• improved repeatability
• cleaner documentation
• fewer assembly-stage defects

For ready-to-use assemblies, fewer interfaces can mean fewer fitment checks, fewer alignment risks, and a cleaner production flow.

When the final requirement is not just a casting, but a machined, finished, inspected, and assembled component, simplifying the design early can improve the entire manufacturing flow.

Reducing Welds and Joined Construction

One of the strongest use cases for part consolidation is replacing welded or joined construction with a single casting.

Welded assemblies can be effective, but they also introduce several variables:

• weld distortion
• heat-affected zones
• joint preparation
• weld inspection
• fixture control
• post-weld machining
• strength variation
• leakage risk in fluid applications
• appearance and finishing issues

In some applications, welding is the right choice. But when geometry can be consolidated into an investment casting, the need for welding may be reduced or removed.

A single casting can provide more continuous geometry and reduce the number of joined areas. This can improve stability, simplify inspection, and reduce downstream correction.

For components exposed to pressure, flow, vibration, or repeated loading, reducing unnecessary joints can improve long-term confidence in the part.

The decision should always be application-specific. The question is not whether casting is better than welding in every case. The question is whether a consolidated casting can reduce unnecessary manufacturing risk for that specific component.

Supporting Better Flow Paths and Functional Geometry

Investment casting is particularly useful when component performance depends on complex internal or external geometry.

In flow-related components, for example, abrupt transitions, poorly aligned passages, welded joints, or multi-piece construction can affect performance. A consolidated casting can allow smoother transitions, more compact geometry, and better integration of functional features.

This can be useful in:

• valve bodies
• pump components
• manifolds
• housings
• impellers
• fluid control parts
• cooling system components
• process equipment components

Part consolidation allows engineers to design around flow, strength, weight, and assembly requirements together.

Instead of designing separate parts that must later be joined, the component can be shaped as a more integrated form from the beginning.

This is one of the reasons investment casting is often selected for components where geometry is not merely structural, but functional.

Material Efficiency and Near-Net-Shape Value

Part consolidation through investment casting can also improve material efficiency.

When components are machined entirely from solid blocks, a large amount of material may be removed to create internal shapes, cavities, curved surfaces, or external features. This can be expensive, especially when using stainless steels, alloy steels, or other higher-value materials.

Investment casting reduces this waste by producing the component closer to the desired shape.

The benefit becomes stronger when multiple features are integrated into one casting. Less material is removed. Fewer individual parts are produced. Fewer joining operations are required. The overall manufacturing route becomes more efficient.

This does not mean investment casting always has the lowest upfront process cost. Tooling, wax pattern production, shell building, and process control all require planning.

But when viewed across the complete manufacturing path, near-net-shape investment casting can reduce total production complexity for suitable components.

When Part Consolidation Makes Sense

Part consolidation through investment casting is most valuable when the component has enough complexity to justify the approach.

It may make sense when:

• multiple parts are currently being joined
• assembly alignment is difficult
• welded construction creates distortion or inspection challenges
• machining from solid creates excessive waste
• the part includes complex shapes or curved geometry
• flow paths or internal features matter
• repeated production requires consistency
• downstream machining must be reduced
• assembly readiness is important
• total manufacturing cost matters more than only raw part cost

It may not be the best option when the component is very simple, very large, extremely low volume, or likely to undergo frequent design changes before production stabilizes.

The best decision comes from evaluating the full manufacturing route, not just the casting process.

Design Review Is Critical Before Consolidation

A consolidated casting must be designed carefully.

Combining parts without considering manufacturing behavior can create new problems. Wall thickness, shrinkage, metal flow, gating, machining allowance, datum planning, and inspection strategy must all be reviewed.

Important questions include:

• Can the geometry be cast consistently?
• Are wall thickness transitions suitable?
• Where will machining be required?
• Which surfaces are function-critical?
• How will the casting be held during machining?
• Can the component be inspected effectively?
• Will consolidation affect assembly or serviceability?
• Does the selected alloy suit the application?
• Is production volume suitable for tooling investment?

Part consolidation should not be treated only as a CAD exercise. It requires collaboration between design, foundry, machining, inspection, and assembly teams. When handled properly, consolidation can reduce complexity. When handled poorly, it can simply move complexity from assembly into casting.

This is why designing components for investment casting requires early collaboration between design, foundry, machining, inspection, and assembly teams.

Part Consolidation and Ready-to-Use Component Manufacturing

Shilpan Steelcast’s current manufacturing approach is focused on more than producing investment castings. The goal is to support complete, ready-to-use components through investment casting, precision machining, assembly, strategic sourcing, and supply chain management.

Part consolidation fits naturally into this model.

When a component is consolidated at the design and casting stage, downstream manufacturing becomes easier to control. Precision machining can focus on critical areas. Assembly can involve fewer interfaces. Inspection becomes more structured. Supply chain coordination becomes simpler because fewer separate items may be involved.

For customers, this can reduce complexity across the complete component program.

Instead of managing several parts and process stages independently, the customer can work toward a more integrated component solution.

This is where investment casting supports the broader shift from part supply to manufacturing partnership.

Shilpan Steelcast’s Approach to Consolidated Investment Cast Components

As one of India’s largest investment casting manufacturers, Shilpan Steelcast supports components where geometry, repeatability, machining readiness, and assembly requirements must be considered together.

The company’s integrated model allows investment casting to be aligned with precision machining, inspection, assembly, sourcing, and supply chain management under one coordinated manufacturing system.

This is important because part consolidation does not end at casting. A consolidated casting may still require machining, surface treatment, dimensional inspection, assembled hardware, packaging, documentation, and delivery planning.

By considering these stages together, Shilpan helps customers evaluate whether investment casting can reduce component complexity and support a more reliable path to ready-to-use delivery.

The value is not only in producing a cast shape. It is in helping that shape become a finished, functional component with fewer process gaps.

Conclusion

Part consolidation through investment casting can reduce complexity before machining and assembly begin.

By integrating multiple features into one near-net-shape component, investment casting can reduce interfaces, tolerance stack-ups, welded joints, machining load, assembly steps, and supplier coordination. For suitable components, this creates a cleaner and more stable manufacturing route.

The decision must be made carefully. Not every part should be consolidated, and not every geometry is ideal for investment casting. But when the component demands complexity, repeatability, functional geometry, and downstream readiness, investment casting can offer a strong advantage.

In modern manufacturing programs, the best design is often not the one with the simplest individual parts. It is the one with the simplest total manufacturing path.

For many precision metal components, that path begins with thoughtful part consolidation through investment casting.
