Precision Machining After Investment Casting: Why Downstream Accuracy Starts at the Foundry

Investment casting and precision machining are often discussed as separate manufacturing stages. One creates the near-net shape component. The other brings critical dimensions, tolerances, sealing faces, threads, bores, and mounting features to the final specification.

In real OEM programs, however, these two stages are deeply connected.

A cast component not designed with machining in mind can cause problems later in the production cycle. Machining allowances may become inconsistent. Datum references may shift. Fixtures may become difficult to stabilize. Tooling paths may need repeated correction. In some cases, the casting may meet its own requirements but still create challenges when converted into a finished, ready-to-use component.

This is why downstream machining accuracy does not begin at the CNC machine. It begins much earlier, at the foundry.

For OEMs working with complex industrial components, the strongest results come when investment casting and precision machining are treated as one connected manufacturing sequence, not two disconnected operations.

Why Machining Accuracy Depends on Casting Discipline

Precision machining can achieve tight tolerances, but it cannot fully compensate for uncontrolled variation in the casting stage.

If casting geometry varies too much from part to part, machining teams must spend more time correcting inconsistencies. If surfaces are not stable, fixture positioning becomes less predictable. If excess stock is uneven, cycle times increase and tool wear becomes harder to control.

This does not mean investment castings must be perfect before machining. Investment casting is a near-net-shape process, and many critical areas are intentionally left unfinished until later CNC machining. But the casting must be consistent enough to support repeatable machining.

That consistency depends on several foundry-level factors:

• Wax pattern accuracy
• Shell consistency
• Controlled metal flow
• Predictable shrinkage
• Heat treatment stability
• Dimensional inspection
• Proper machining allowance planning

When these elements are controlled, the machining stage becomes more predictable. Instead of correcting variation, CNC machining can focus on achieving the final engineered specification.

The Role of Near-Net Shape in Reducing Machining Complexity

One of the major advantages of precision investment casting or lost-wax casting is its ability to produce near-net-shape components. This means the casting is produced close to the final required geometry, reducing the amount of metal that must be removed during machining.

For OEMs, this offers several advantages.

First, it reduces machining time. Less material removal generally means shorter cycle times and lower tool load. Second, it can reduce material waste, especially when components are produced from stainless steels, alloy steels, or other higher-value materials. Third, it helps preserve design intent by enabling complex forms to be created directly at the casting stage rather than machined from a solid block.

However, near-net shape only creates value when properly controlled.

If the casting is too close to final dimensions without sufficient machining allowance, there may not be enough stock to finish critical areas. If too much stock is left unnecessarily, machining becomes slower and less efficient. The balance must be engineered carefully.

This is where early collaboration between casting and machining teams becomes essential.

Machining Allowance: A Small Decision with Major Production Impact

The machining allowance is one of the most important design and manufacturing decisions for any cast-to-machined component.

It defines how much extra material is intentionally provided on surfaces that will later be machined. This allowance must account for casting variation, shrinkage, distortion, finishing requirements, and final tolerance expectations.

Too little allowance can create undersized areas, incomplete cleanup, or rejected parts. Too much allowance can increase machining time, tool wear, fixture load, and production cost.

The right allowance depends on:

• Component geometry
• Alloy behavior
• Casting size and weight
• Wall thickness variation
• Heat treatment requirements
• Critical tolerance zones
• Final machining operations

For example, a valve body, pump housing, bracket, manifold, or industrial equipment component may include surfaces that require tight machining and others that can remain as cast. Treating every surface the same can create unnecessary cost. Treating critical areas too lightly can create quality risks.

A capable investment casting manufacturer will evaluate which features require machining stock and which features can be produced near-net with confidence. This planning improves both manufacturability and final component reliability.

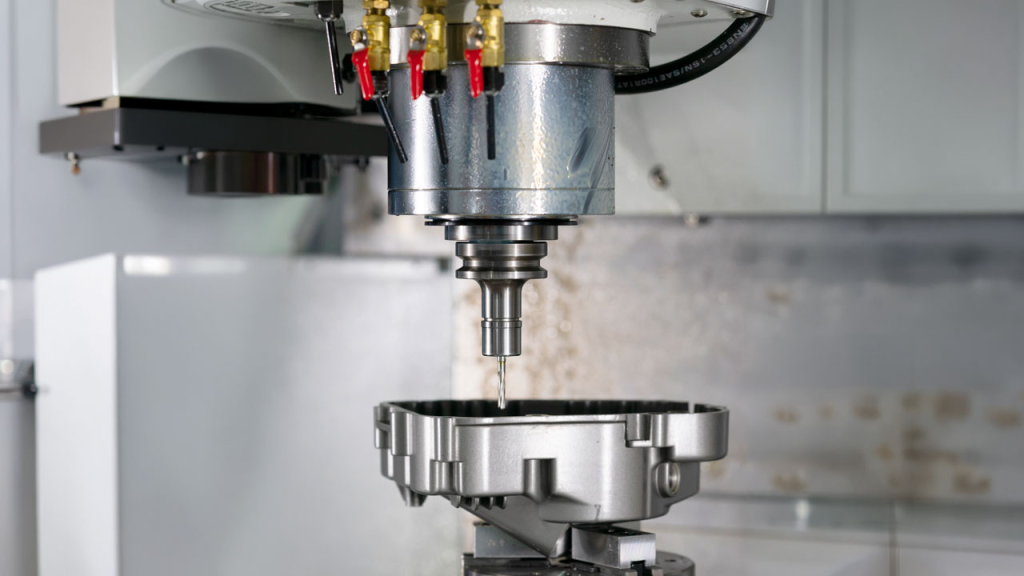

Datum Planning: The Link Between Casting Geometry and CNC Accuracy

In precision machining, datums define how the component is located, clamped, measured, and machined. Poor datum planning can create major downstream challenges, especially in cast components with complex geometry.

A datum that looks logical in CAD may not always be practical on the shop floor. Cast surfaces may have draft, curvature, surface variation, or access limitations. If the selected reference points are unstable, every subsequent machining operation becomes harder to control.

Strong datum planning considers both the casting and machining processes.

The manufacturing team must ask:

• Which surfaces will remain as-cast?
• Which surfaces will be machined first?
• Which features control assembly alignment?
• Which dimensions are function-critical?
• How will the part be held consistently across batches?
• How will inspection validate the finished geometry?

When these questions are addressed early, the finished component is easier to produce consistently. When they are ignored, machining teams may be forced to create workarounds that increase variation and cost.

For OEMs, this is one of the clearest examples of why precision machining after investment casting should be planned as an integrated process. Before machining strategy is finalized, OEM engineers should also consider broader principles of designing components for investment casting.

Fixture Strategy and Repeatability

Even the best CNC machine cannot produce consistent results if the component is not held correctly.

Fixture design is especially important for investment cast components because many castings have irregular shapes, curved profiles, or complex surfaces. Unlike bar stock or standard billets, castings often require custom workholding strategies.

A good fixture must support the part securely without distorting it. It must also allow access to the required machining areas and maintain repeatability across production batches.

Fixture planning is influenced by:

• Casting geometry
• Part weight
• Machining sequence
• Clamping pressure
• Tolerance requirements
• Accessibility of critical features
• Inspection requirements

If fixture planning happens too late, it can expose earlier design problems. A component may be difficult to clamp. Critical features may be hard to reach. Reference surfaces may not be stable. In such cases, the issue is not only a machining problem. It is a manufacturing planning problem.

By connecting foundry knowledge with machining expertise, manufacturers can design castings that are easier to locate, clamp, machine, and inspect.

Why Heat Treatment and Distortion Control Matter

Many investment cast components require heat treatment to achieve specific mechanical properties, hardness levels, or metallurgical conditions. Heat treatment can improve performance, but it can also introduce dimensional movement if not properly controlled.

For machined castings, this becomes especially important.

If a component is machined before heat treatment, dimensional changes during heating and cooling may affect final tolerances. If it is heat-treated before machining, the machining process must account for any distortion that has already occurred.

There is no single rule for every component. The right sequence depends on material, geometry, tolerance requirements, and application.

This is why casting, heat treatment, and machining teams must work together. A foundry that understands downstream machining can plan the process sequence more intelligently, reducing the risk of unexpected dimensional changes.

For OEMs, this translates into fewer surprises during production and more stable quality outcomes.

Surface Finish, Sealing Faces, and Functional Interfaces

Many investment cast components include functional surfaces that cannot be left entirely as-cast.

These may include:

• Sealing faces
• Bearing seats
• Threaded holes
• Mounting surfaces
• Flange faces
• Bores
• Shaft interfaces
• Assembly contact areas

These areas often require precision machining because they directly affect how the component performs in the final system.

For example, a pump housing may require machined bores and sealing surfaces. A valve body may require accurate threads, ports, and flange faces. A mounting bracket may require flatness and hole-position accuracy. A manifold may require precise interfaces for leak-free assembly.

The casting process must provide enough consistency and material condition to allow these features to be machined correctly.

This is where the combined strength of investment casting and precision machining becomes valuable. Investment casting produces the complex body. Precision machining completes the functional interfaces. Together, they create a finished component that is both geometrically efficient and application-ready.

Inspection Feedback Between Casting and Machining

Quality control should not be limited to final inspection.

In a well-managed manufacturing system, inspection feedback flows between casting and machining. Dimensional data from machined components can reveal patterns in casting variation. Casting inspection can identify areas that may affect machining stability. Machining feedback can help refine tooling, allowance, fixture strategy, or process controls.

This feedback loop is especially important for OEM programs moving from prototype to production.

During early batches, teams may identify opportunities to improve:

• Wax tooling
• Casting tolerances
• Machining allowances
• Fixture design
• Inspection methods
• Process sequence
• Critical feature control

When this learning is captured and applied, production becomes more stable over time. Without it, the same problems may repeat across batches.

This is one reason OEMs increasingly prefer manufacturing partners that can manage both casting and machining under a connected quality system.

Reducing Program Risk Through Integrated Manufacturing

When investment casting and machining are handled by different suppliers, coordination becomes more complicated.

The foundry may focus only on producing acceptable castings. The machine shop may focus only on achieving final dimensions. If problems arise between the two stages, responsibility can become unclear.

Was the issue caused by casting variation? Machining setup? Fixture design? Insufficient allowance? Heat treatment movement? Inspection interpretation?

This fragmentation can slow down corrective action.

An integrated manufacturing approach reduces that risk. When casting, machining, inspection, and process engineering are integrated into a single system, the supplier can identify issues more quickly and take ownership of the entire manufacturing process.

For OEMs, this creates several advantages:

• Faster technical feedback
• Better accountability
• Lower coordination burden
• Improved production stability
• More reliable lead times
• Clearer quality ownership

In complex OEM programs, this can be more valuable than simply choosing the lowest-cost supplier for each individual process. This is also why reducing risk in complex OEM programs depends on how well manufacturing stages are connected.

Why This Matters for Global OEMs

Global OEMs are under constant pressure to improve reliability, reduce supplier complexity, and maintain consistent quality across production programs. Components must meet dimensional expectations, arrive on schedule, and integrate smoothly into larger assemblies.

In this environment, the relationship between casting and machining becomes a strategic concern.

A component that is difficult to machine can delay assembly. A poorly controlled casting can increase inspection failures. A weak feedback loop can lead to recurring quality issues. A disconnected supplier base can slow and make root-cause analysis less effective.

For buyers, engineers, and sourcing teams, the question is not simply whether a supplier can produce an investment casting or machine a component. The better question is whether the supplier can control the full path from cast geometry to finished part.

That is where an integrated partner brings measurable value.

Shilpan Steelcast’s Approach to Cast-to-Machined Components

Shilpan Steelcast’s manufacturing model is built around this connected execution philosophy.

As an investment casting foundry in Rajkot, India, Shilpan supports OEM programs that require investment casting, precision machining, final assembly, sourcing, and supply chain management under one coordinated system.

This matters because many OEM components do not end at casting. They must be machined, inspected, assembled, packed, documented, and delivered in a form that supports production schedules.

By aligning foundry operations with downstream precision machining and assembly capabilities, Shilpan helps customers move from raw casting requirements to ready-to-use components with greater control over quality, timing, and accountability.

For OEMs sourcing from India or managing global supply chains, this integrated approach reduces the complexity of working across multiple vendors while improving confidence in the final component.

For OEMs evaluating machining capacity, Shilpan’s approach to precision machining at scale offers additional context.

Conclusion

Precision machining after investment casting is not a finishing step that can be treated in isolation. It is part of a connected manufacturing sequence that begins with component design, casting planning, machining allowance, process control, heat treatment, fixture strategy, and inspection feedback.

When these stages are aligned, OEMs gain more than a finished component. They gain predictability.

The foundry sets the foundation. Machining completes the functional requirements. Inspection validates the result. Assembly and supply chain management bring the component closer to production readiness.

For complex OEM programs, downstream accuracy begins at the foundry, as every decision made during casting affects how efficiently and reliably the final component can be machined.

Manufacturers that understand this connection are better positioned to deliver not just castings, but complete, production-ready solutions.
